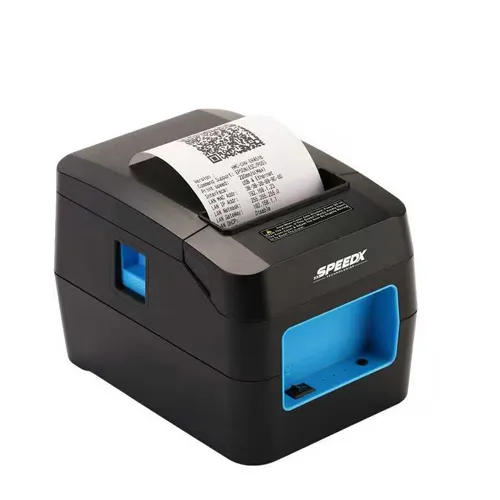

Speed-X SP-90A Thermal Receipt Printer – Bluetooth + WiFi + USB | 80mm | 220mm/s Max Speed

 Key Parameters

Print Parameters

• Printing Method: Thermal Line

• Printing Width: 72mm

• Resolution: 576 dots/line or 512 dots/line (203 dpi)

• Print Speed: 160–220mm/s (MAX)

• Line Spacing: 3.75mm (adjustable by command)

• Line Count:

  • Font A: 48 lines

  • Font B: 64 lines

  • Chinese (Simple/Traditional): 24 lines

 Character Specifications

• Supported Fonts: GB18030 Simplified Chinese / BIG5 Traditional Chinese

• Optional: Japanese & Korean

• Character Sizes:

  • Font A: 1.5×3.0mm (12×24 dots)

  • Font B: 1.1×2.1mm (9×17 dots)

  • Chinese: 3.0×3.0mm (24×24 dots)

• Extended Character Sets: PC437, Katakana, PC850, PC860, PC863, PC865, Greek, Hebrew, Arabic, Thai, Vietnamese & more.

 Barcode Support

• 1D Barcodes: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128

• 2D Barcode: QR Code

 Graphics & Commands

• Supports bitmap download & printing

• ESC/POS command compatible

 Paper Specifications

• Paper Type: Thermal

• Width: 79.5 ± 0.5mm

• Max Diameter: ≤80mm

• Feed Method: Easy Clamshell Feed

 Connectivity / Interface

• USB

• Bluetooth

• WiFi

• Internet (LAN)

  (Interface combinations depend on model batch; contact manufacturer to confirm)

Power

• Adapter Input: AC 100–240V, 50–60Hz

• Adapter Output: DC 12V/2A

• Cash Drawer Output: DC 12V/1A

 Memory & Reliability

• NV Flash: 256KB

• Print Head Life: 100 KM (print density ≤12.5)

• Auto Cutter Life: 1,000,000 cuts

Physical Characteristics

• Weight: 0.9 kg

• Dimensions: 185 × 133 × 133 mm

 Environment

• Working Temp: 5–45°C | Humidity: 10–80%

• Storage Temp: −10–50°C | Humidity: 10–90% (No condensation)

 Software Support

• Drivers for: Android, iOS, Linux, Windows
